4K Multi-Image Processor with KVM Control for Operator Stations

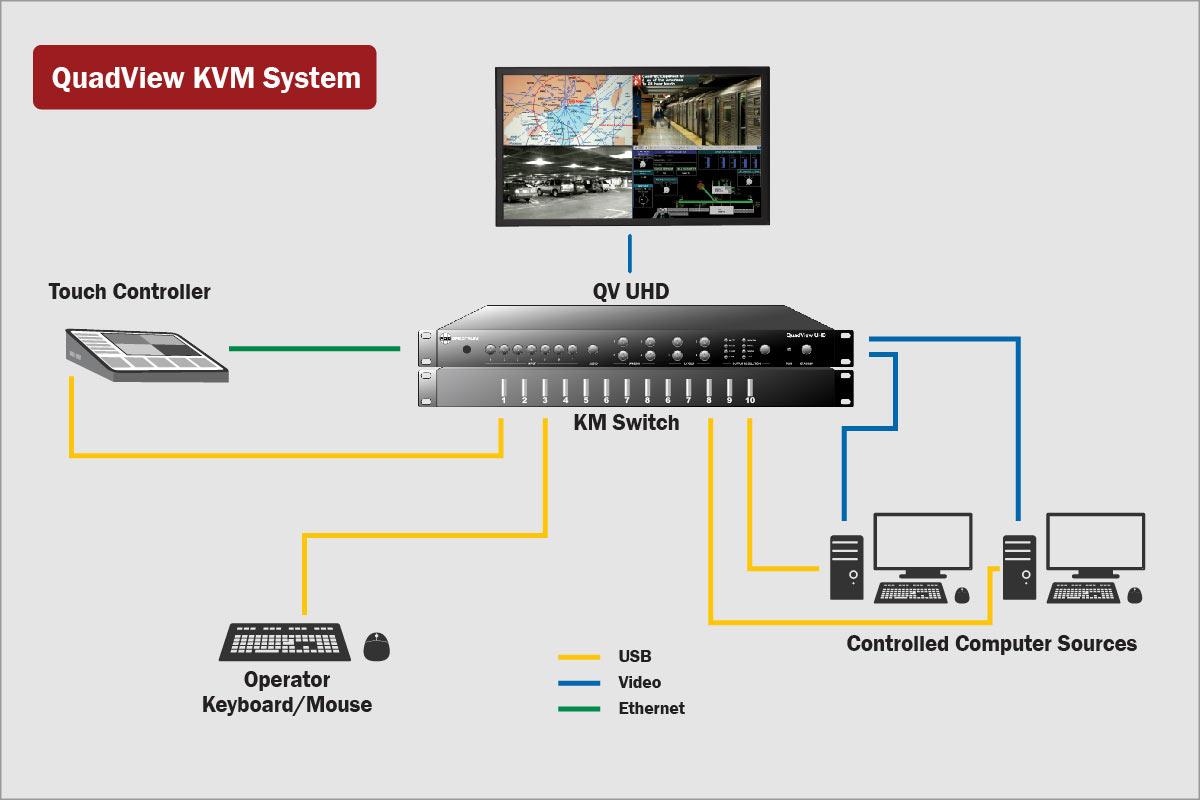

RGB Spectrum QuadView KVM system diagram

Introducing RGB Spectrum's new QuadView® KVM – a complete, turnkey solution that combines a high-performance 4K multi-image video processor with remote keyboard/mouse control of connected computers. It is designed for displaying and controlling up to four inputs in a variety of layouts on a 4K resolution monitor. Touch-enabled routing of audio and video with synchronized switching provides fast access to any of up to seven signal sources.

Connect the QuadView processor to a display device up to 4K resolution and you're ready for the next generation in multiviewer performance. You can mix and match input resolutions, scale any video input up to 4K resolution and route any input to any window on the screen. Inputs can be displayed without downscaling, taking full advantage of the QuadView processor's remarkable image processing. Seven inputs are available, from which up to four can be displayed simultaneously.

The QuadView KVM's integrated keyboard and mouse control reduces desktop clutter and enables enhanced operator response. For example, if a door alarm is triggered an operator can quickly select the access control computer, investigate where the door is located, and respond to the alarm—without having to guess which keyboard and mouse is connected to which computer system.

The system comes preconfigured as a complete turnkey solution with multiviewer, touch panel controller, USB switch and cabling.

Key features include:

  • Integrated keyboard and mouse control for up to seven inputs
  • Multi-headed computer support
  • Eight screen layouts including single, side-by-side, and quad views
  • Compatibility with monitors up to 4K resolution
  • Switchable inputs
  • Dedicated touch panel controller

Компания RGB Spectrum — ведущий разработчик и производитель критически важных аудиовизуальных решений в режиме реального времени для гражданских, правительственных и военных организаций. Компания предлагает интегрированное оборудование, программное обеспечение и системы управления для реализации самых высоких стандартов. С 1987 года RGB Spectrum помогает своим клиентам принимать лучшие решения.Better Decisions. Faster.™
